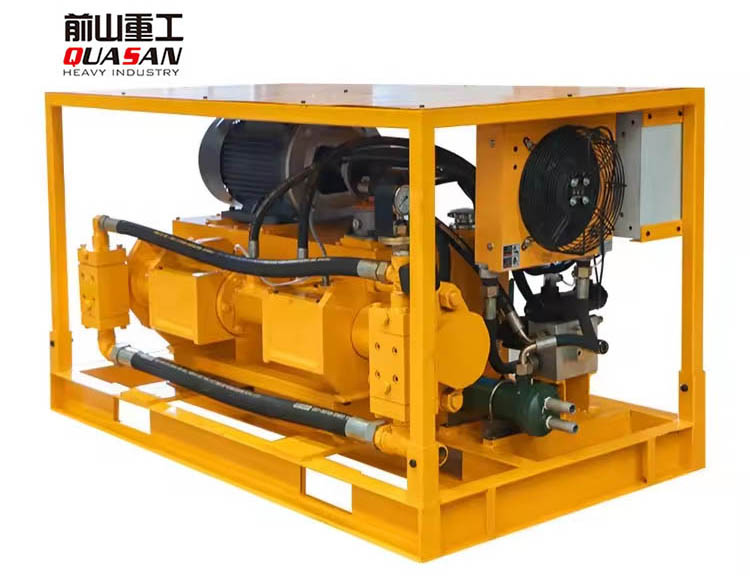

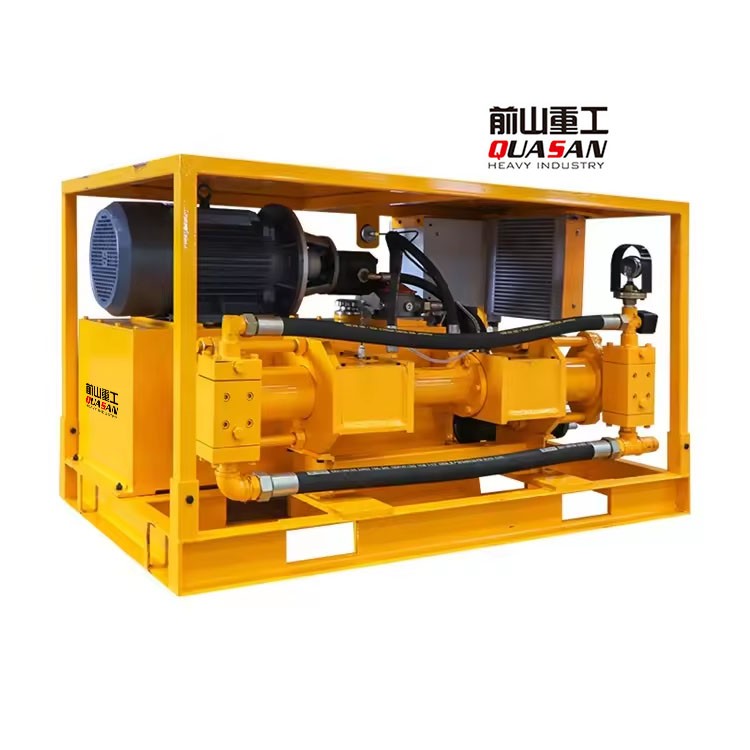

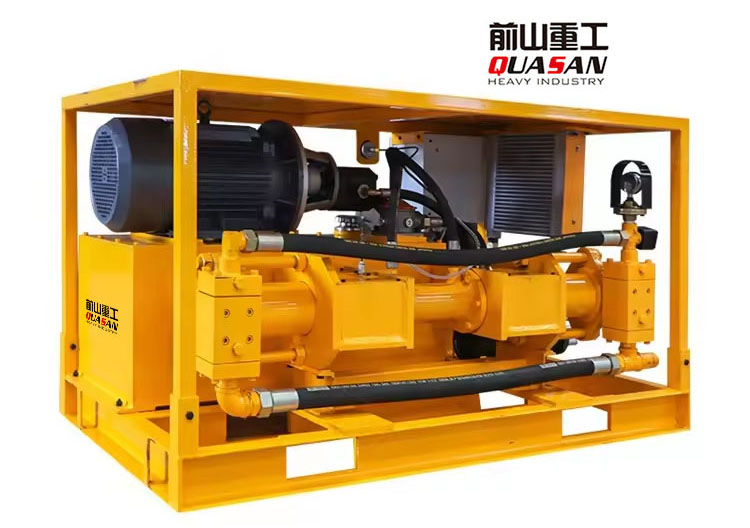

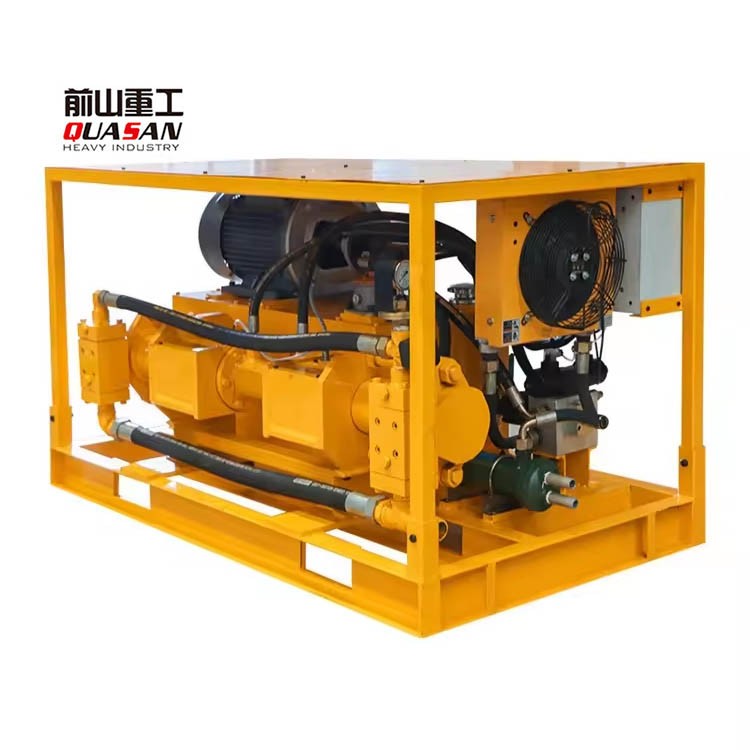

Small grouting pump for Anchoring drill

Hydraulic grouting pumps are suitable for high-pressure, high-volume grouting and sealing projects. This pump utilizes the working medium (grout, oil) to transmit pressure signals, forming a closed-loop control system. Therefore, it has a simple structure, timely and accurate adjustment, and no overpressure issues.

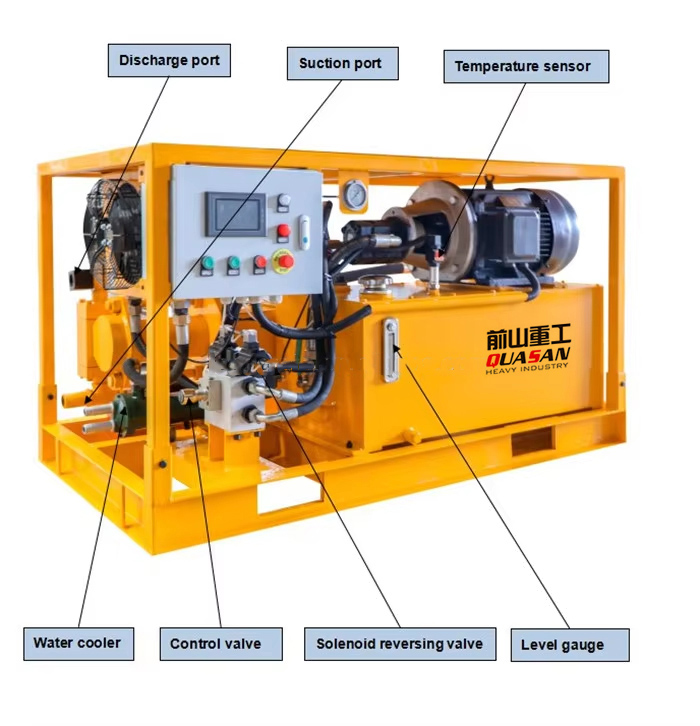

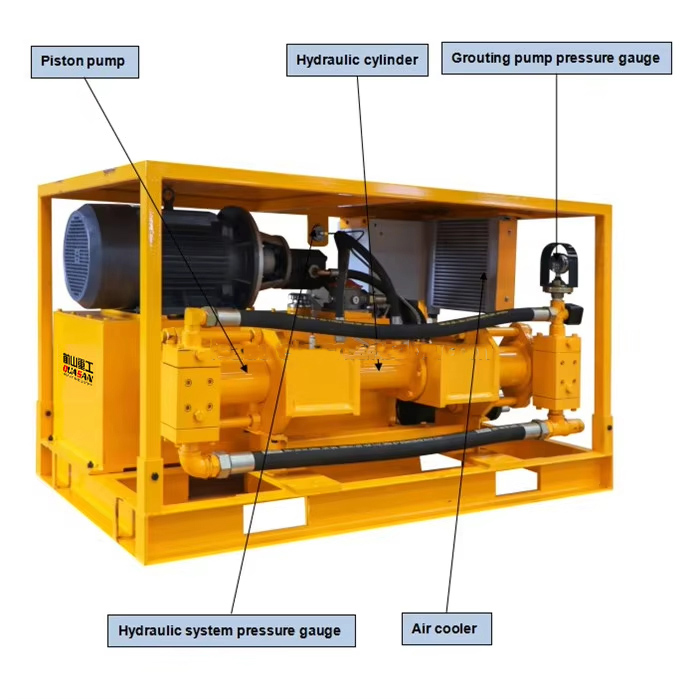

electric cement grout pump ensures continuous slurry flow with minimal pulse, thanks to its double cylinders piston pump design. It features a hydraulic system with oil temperature protection, both hydraulic air and water coolers, and stepless adjustment of grouting pressure and displacement.

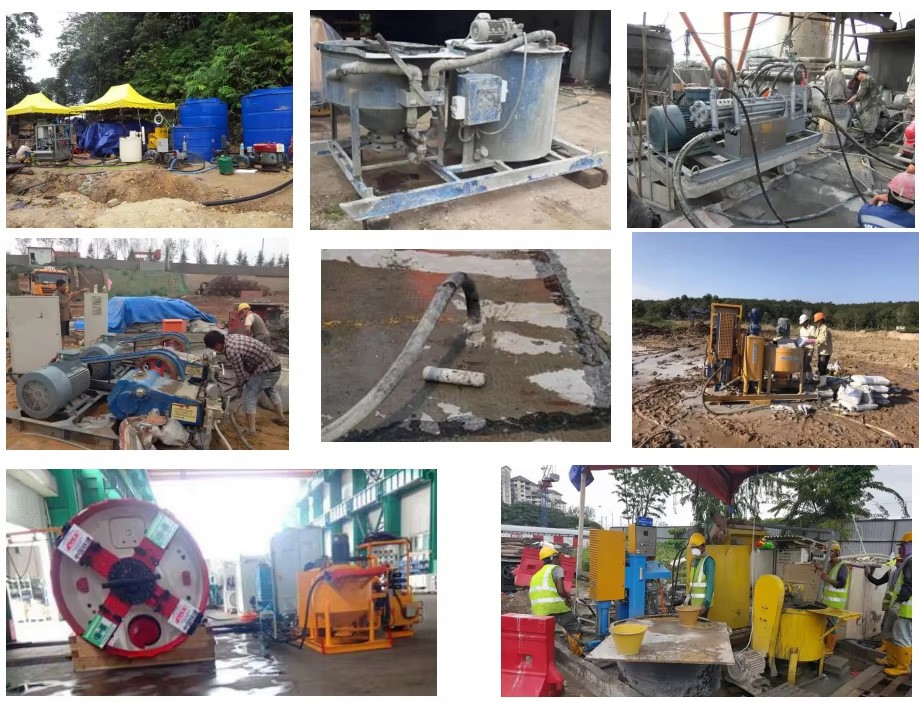

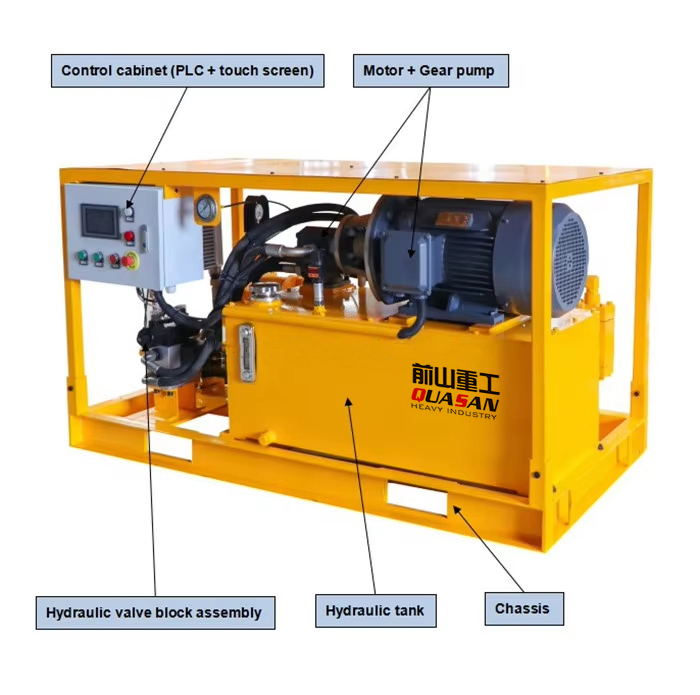

Equipped with PLC and HMI control, it offers precise operation for ground/underground construction such as highways, railways, and mining. The pump operates at a working pressure of 10MPa, with a displacement of 120L/min@3MPa, driven by a 15kW motor.
